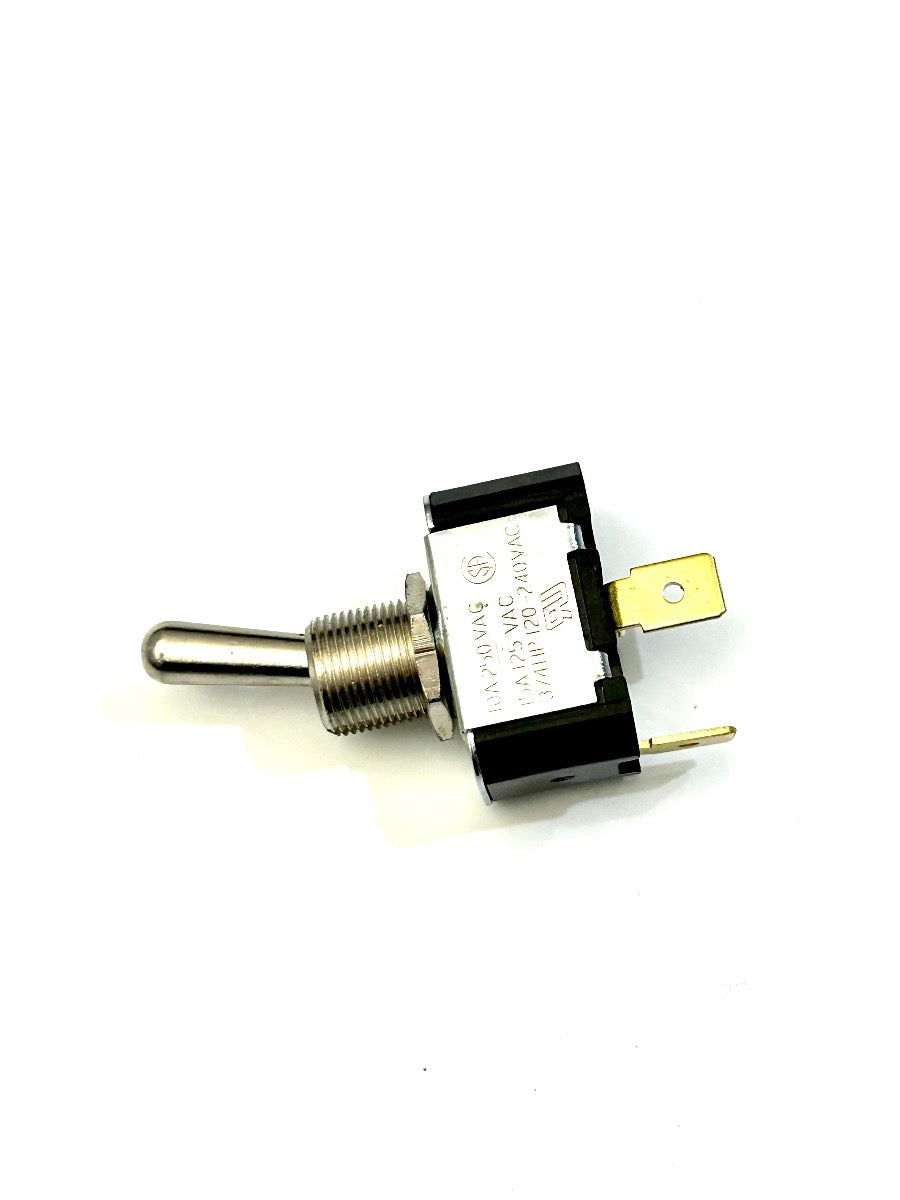

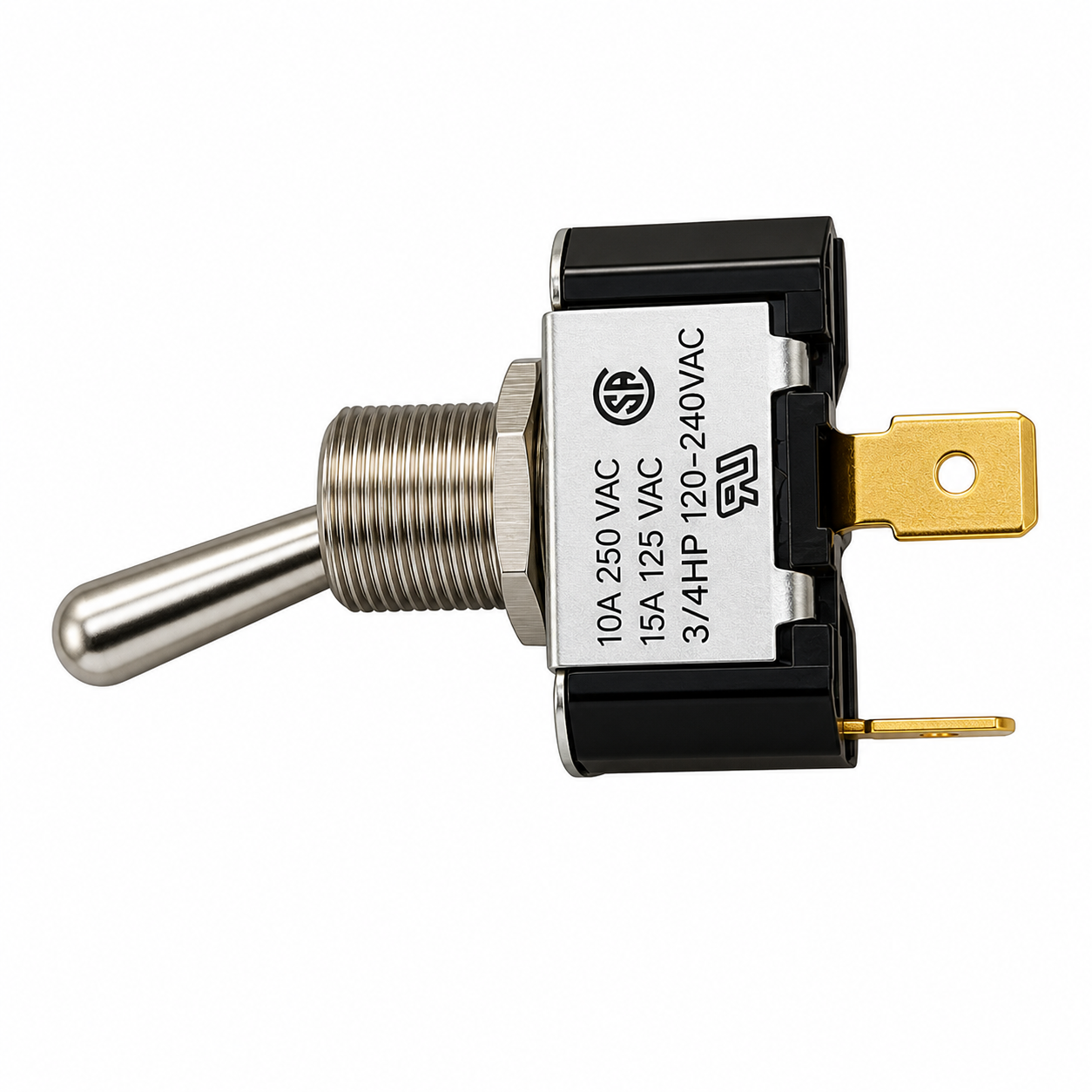

Toggle Switch On-Off SPST

Carling Technology F series On-Off function toggle switch.



Specs

Certifications	UL CSA
Number of Poles	1 pole
Ratings	10A 250VAC 15A 125VAC 3/4HP 120-240VAC 3A 250VAC 6A 125VAC 1/4HP 120-240VAC
Circuits	On-Off
Dielectric Strength	1,000 V RMS (minimum)
Insulation Resistance	100 megohms (minimum)
Base Material	Phenolic
Actuator Style	Ball Toggle
Actuator Material	Brass/Nickel Plate
Bushing Material	Brass/Nickel Plate
Terminal Options	.250 QC Tabs
Mounting Method	Bushing Mount
Mounting Hole Dimensions	.500" diameter; 12.70mm diameter
