IDIA INC

(On)-Off SPST

(On)-Off SPST

Regular price $8.99 USD
Regular price Sale price $8.99 USD
Sale Sold out

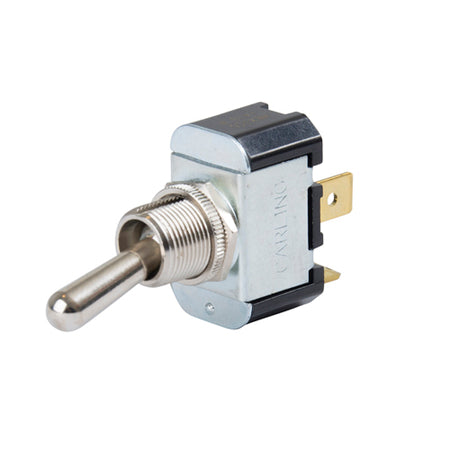

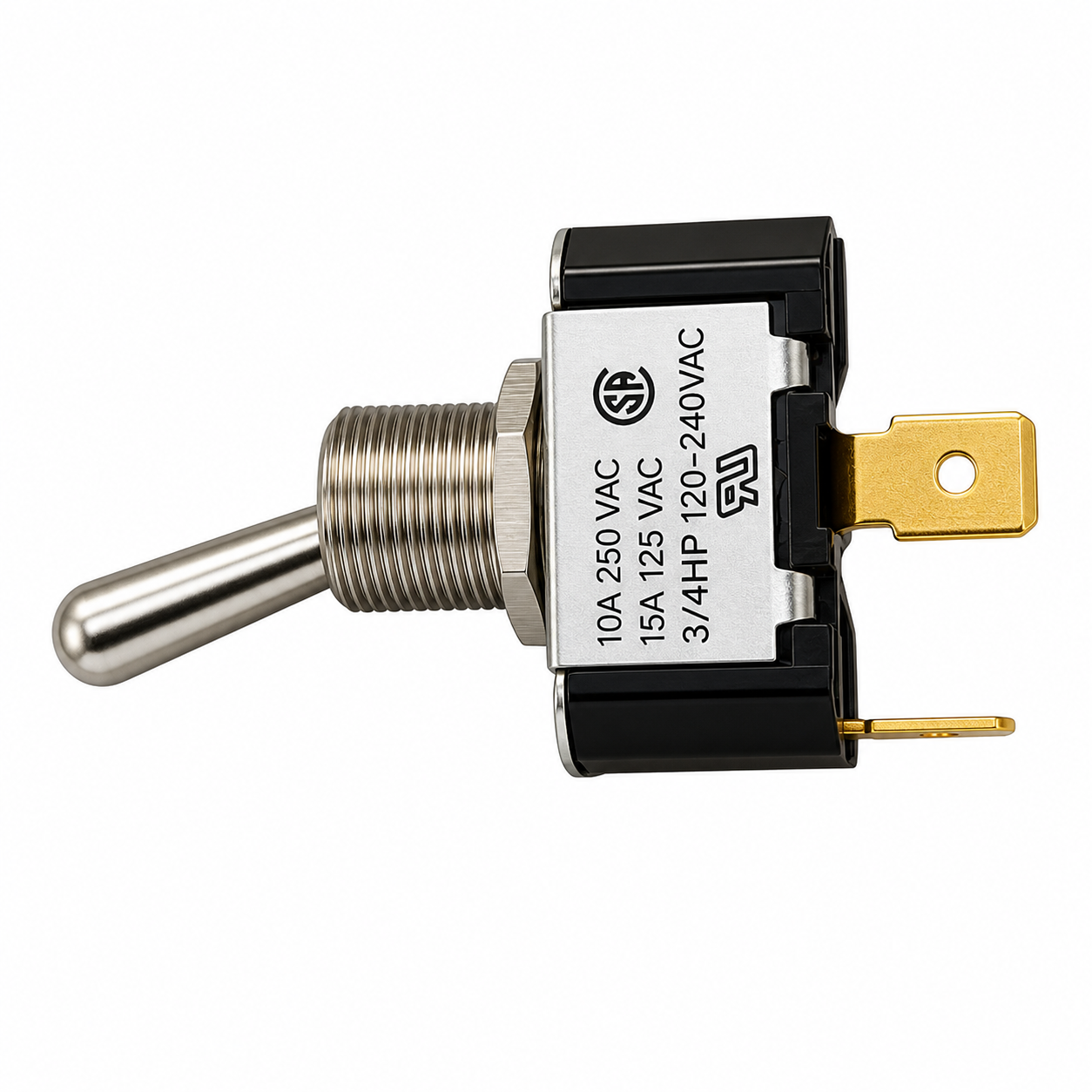

Carling Technology F series Momentary function toggle switch.

This switch is commonly used for:

  • Horn
  • Windlass Up
  • Windlass Down
  • Coffin Box up
  • Coffin Box Down



Specs

Certifications

UL CSA

Number of Poles

1 pole

Ratings

10A 250VAC
15A 125VAC 3/4HP
120-240VAC

3A 250VAC
6A 125VAC 1/4HP
120-240VAC

Circuits

(On)-Off

Dielectric Strength

1,000 V RMS (minimum)

Insulation Resistance

100 megohms (minimum)

Base Material

Phenolic

Actuator Style

Ball Toggle

Actuator Material

Brass/Nickel Plate

Bushing Material

Brass/Nickel Plate

Terminal Options

.250 QC Tabs

Mounting Method

Bushing Mount

Mounting Hole Dimensions

.500" diameter; 12.70mm diameter
