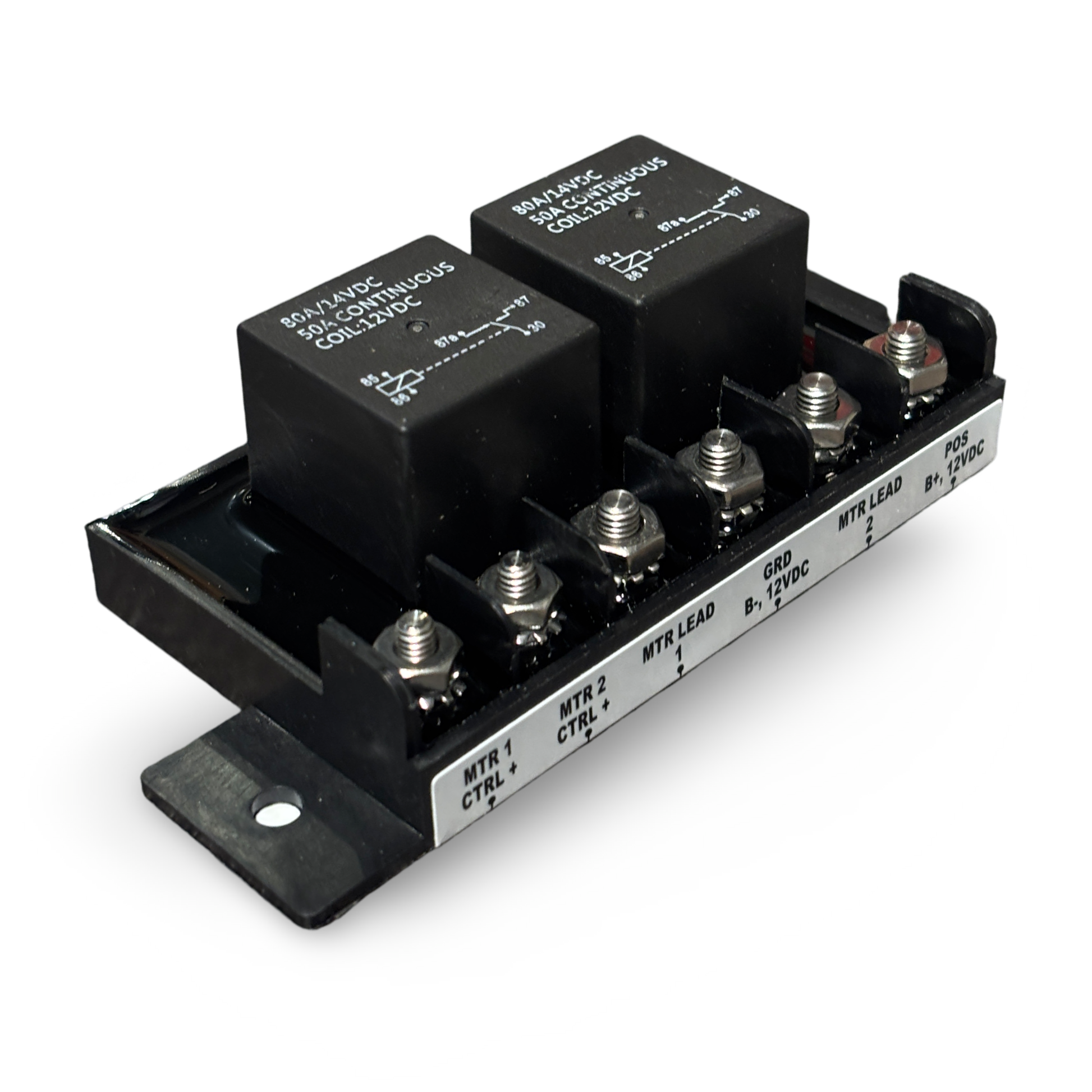

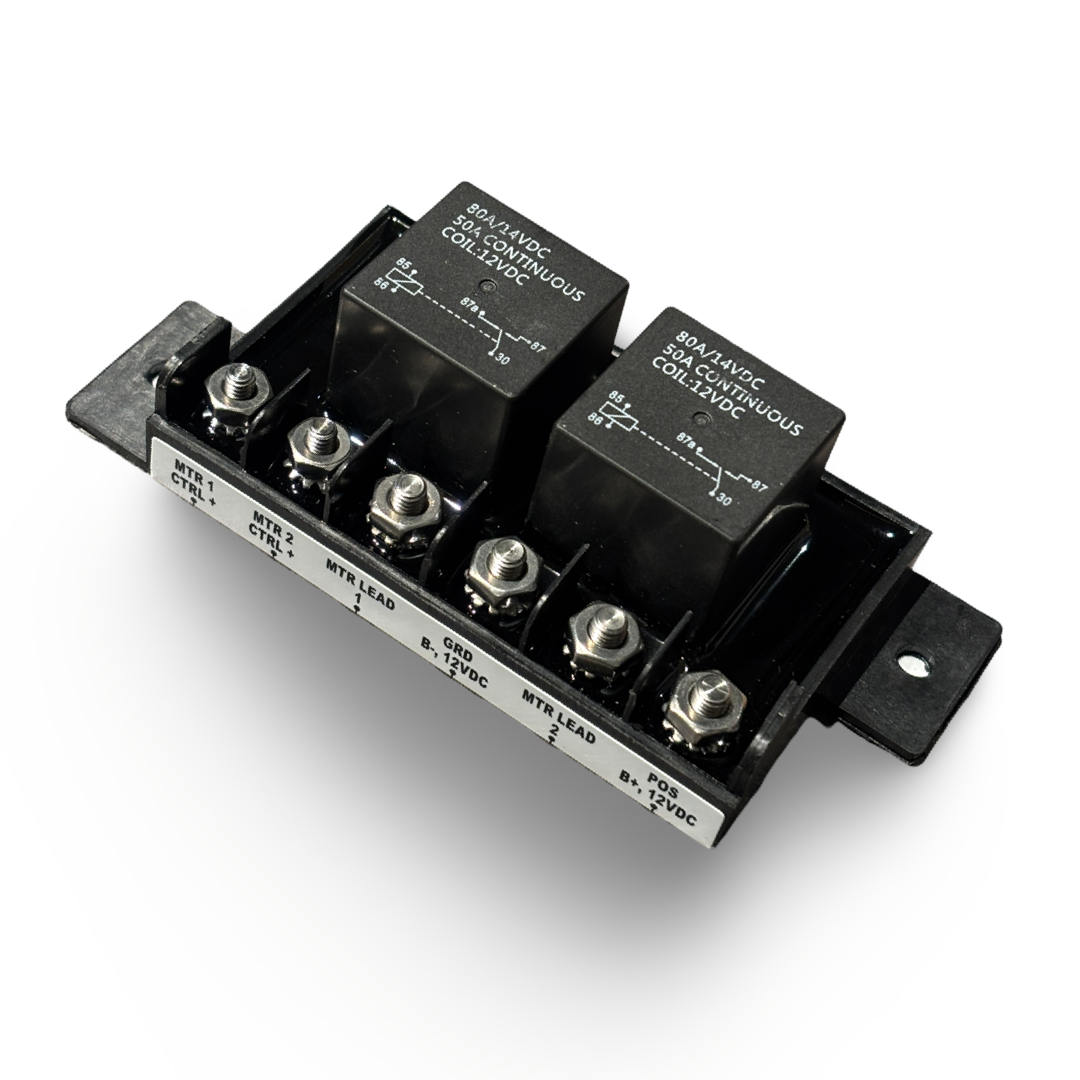

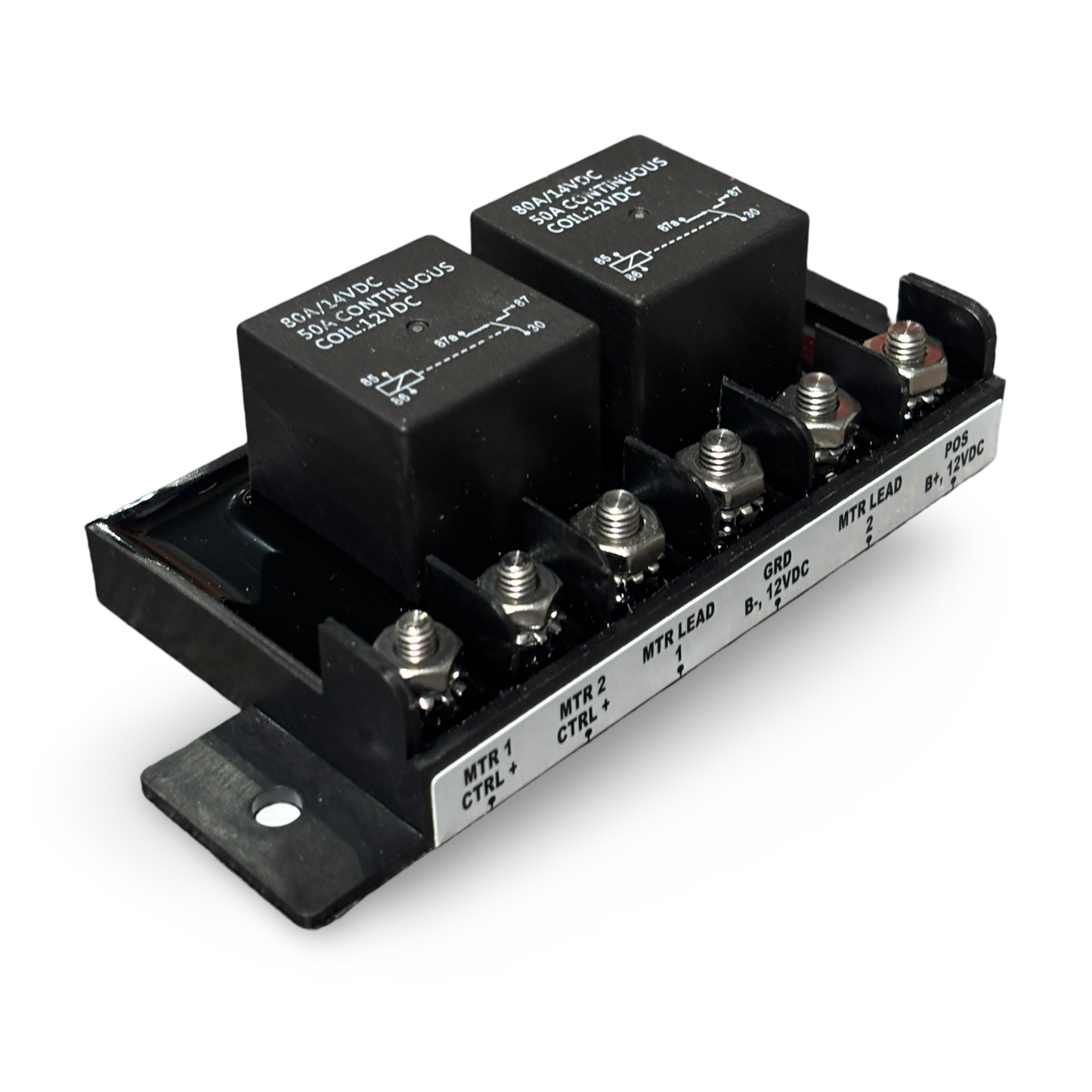

Motor Reversing Module

Built for precision control, this motor reversing module safely and efficiently switches polarity for DC motors. It enables smooth forward and reverse operation while protecting circuits from overload and reverse-current damage.

Whether you’re running trim tabs, hatch lifts, actuators, or winches, this relay module ensures dependable bidirectional control in marine, RV, and industrial systems.

Why You Need It:

• Essential for Push Button Switches: Prevents voltage drop and ensures full power delivery

• Flexible Compatibility: Works with rocker switches, push buttons, and more

• Dynamic Braking: Motor stops instantly when the switch is returned to OFF

• Reliable Power Flow: Eliminates performance loss from voltage drops

Common Applications:

• Trim tabs and hatch lifts

• Hoists and winches

• Tarp and lift systems

• Intake/exhaust fans and vents

Key Specs:

• Load Rating: 50A at 12VDC (intermittent) | 30A at 12VDC (continuous)

• Construction: Rugged, sealed, and potted to IP67 waterproof standard

• Marine-Grade: Tin-plated brass studs and hardware resist corrosion in saltwater use

• Compact Size: 3.88” x 2.20” x 1.37” fits tight spaces

• Studs: 10-32 (x4), 8-32 (x2)

Also Known As:

• Reverse Polarity Module

• Motor Reversing Relay Box

• Forward and Reverse Relay Module

No matter the name, the function is the same—safe, efficient bidirectional motor control.
