IDIA INC

MIDI 5x Fuse Block w/Sealed Cover, M8 Inputs, M6 Outputs, Bulk Pack

MIDI 5x Fuse Block w/Sealed Cover, M8 Inputs, M6 Outputs, Bulk Pack

Regular price $78.00 USD
Regular price Sale price $78.00 USD
Sale Sold out

Description

Applications / Problems This Solves

Reduce Installation Space when combined with other Egis Mobile Electric power management devices and other sealed circuit breaker/fuse blocks.


Expandable with Dual, Triple And Quad Link Busbars  For Plug And Play Install And Complete Switching/Protection Solutions.


Feature Summary

Bullet-proof Construction: Sealed to IP66/IP6K9K, high temperature materials, Gore-Tex vent allow mounting anywhere. Stainless steel cable lug studs. Large mounting holes accept 1/4-20 / M6 attachment hardware.

Protective Cover Stored 2 (Two) spare fuses and 4 (Four) screws. Easy to operate latching mechanism hold cover on securely.

TOTAL CONTINUOUS
CURRENT (AMPS)

500

MAX MIDI/AMI FUSE VALUE (AMPS)
200

INGRESS PROTECTION
IP66 & IP6K9K

Ignition Protected (SAE J1171)?
Yes

OUTPUT STUD SIZE
M6

INPUT STUD SIZE
M8

Sales Sheet

Focal Features

System Compatible

With Egis Mobile Electric MT Series Sealed Circuit Breaker / Fuse Blocks And XD Series High Amp Remote Relays Via Optional Dual, Triple & Quad Link Busbars

Easy Visual Fuse Blown Status

With Cover Off, Ensuring  Quick Identification And Easy Self Locking Stainless Fuse Screws

Fuse Identification

Protective Cover Label Provides Easy Naming Of Fused Circuits.

Sealed Housing

 Protects Against Harsh Environments Ideal For Modern Vessel Installs

Stainless Steel, Self Locking Hardware

Corrosion is no issue with quality stainless steel studs and self locking flanged nuts.


High Visibility Cover Latches

Protects output terminal studs and cable terminal edges from inadvertent shorts to each other or ground.

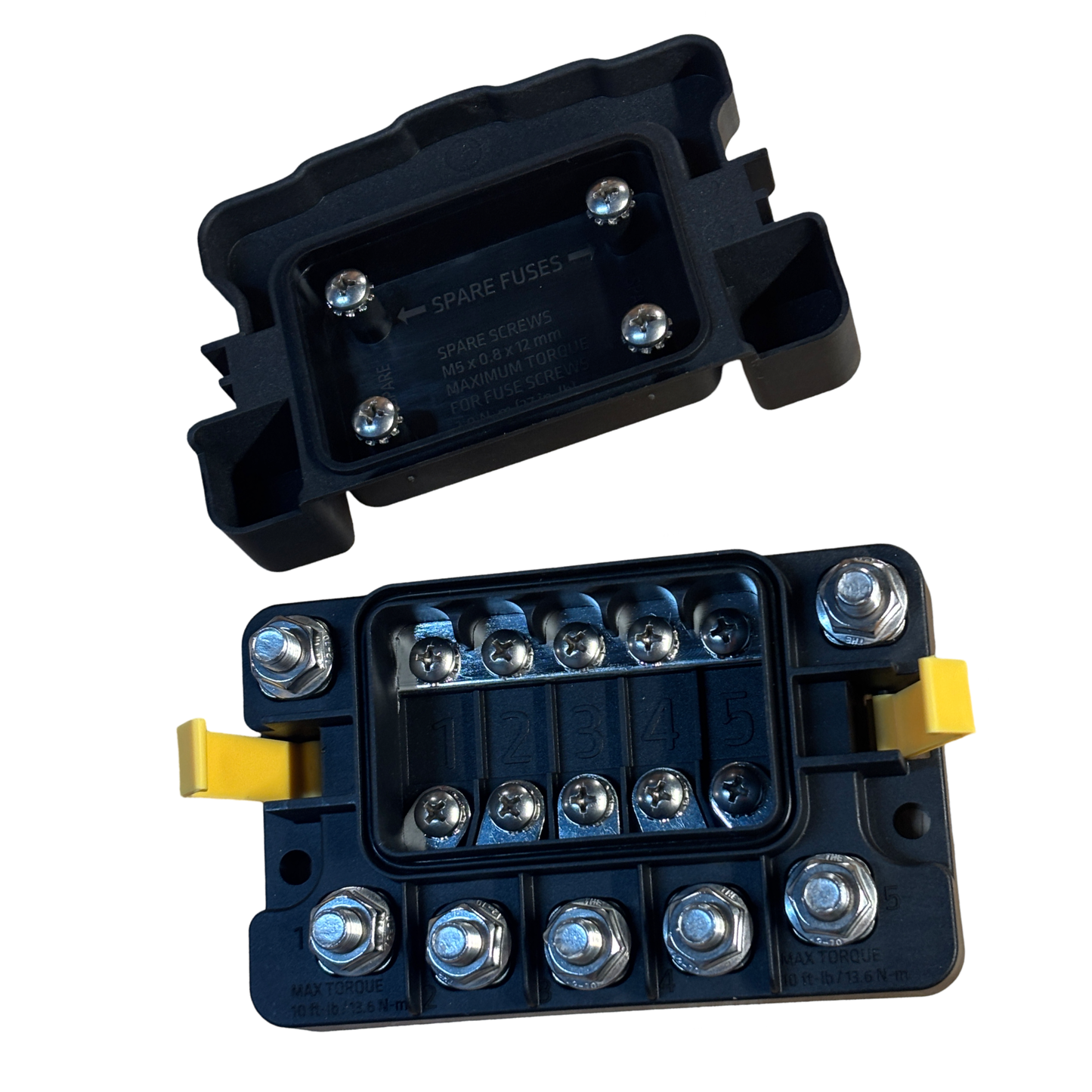

Convenient Spare Fuse Holder

Keeps Two (2) Spare Fuse Held In The Cover With Four (4) Spare Screws
