Breaker Block

Ever been out on the water and had a fuse blow? One of the most common issues boaters face is not having a replacement fuse on hand. That’s why we designed this circuit breaker panel as a direct replacement for traditional fuse boxes—no spare fuses required. Instead of blowing a fuse, each circuit is protected by our 38 Series push-to-reset thermal circuit breakers, allowing you to reset the breaker with a simple press and get back to your day.

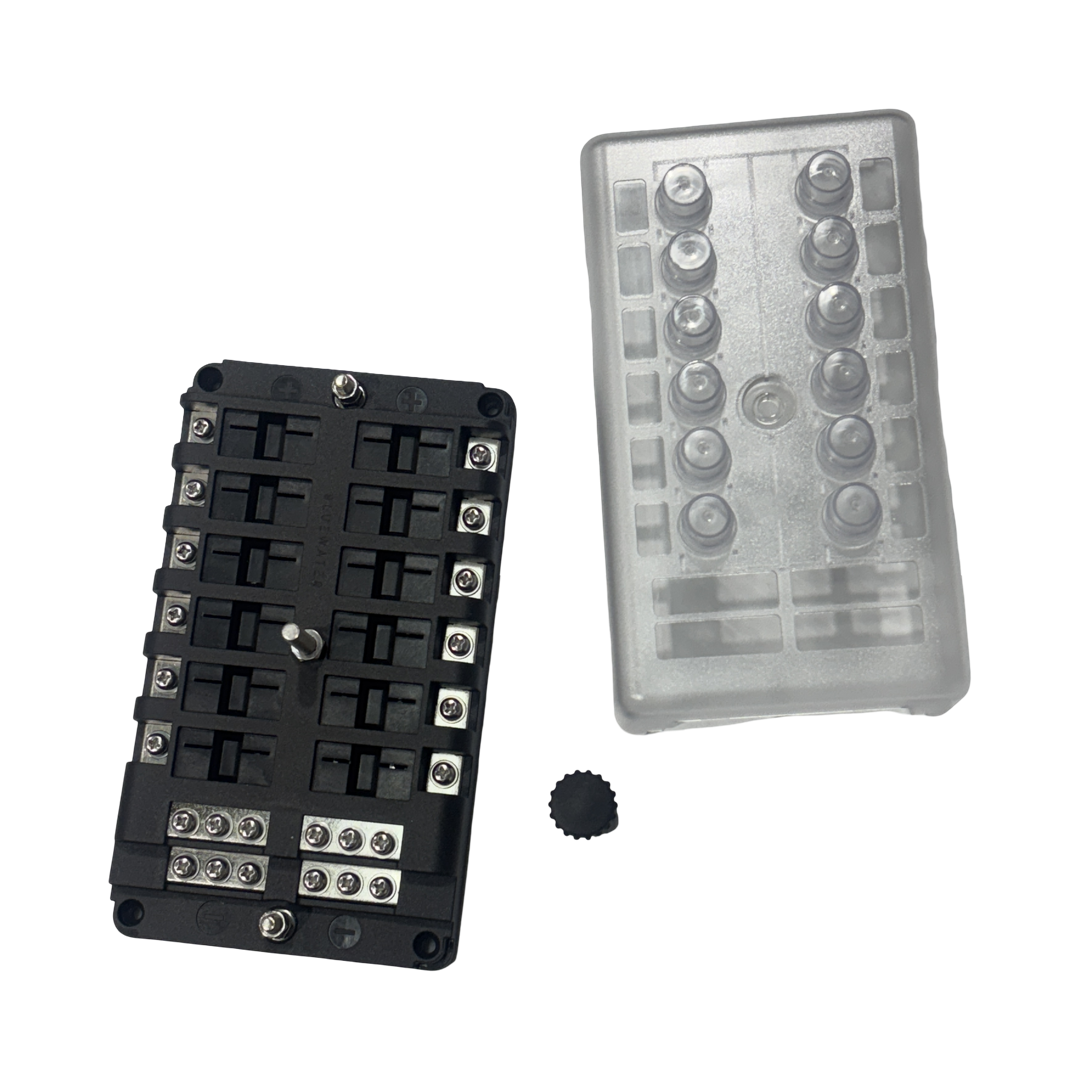

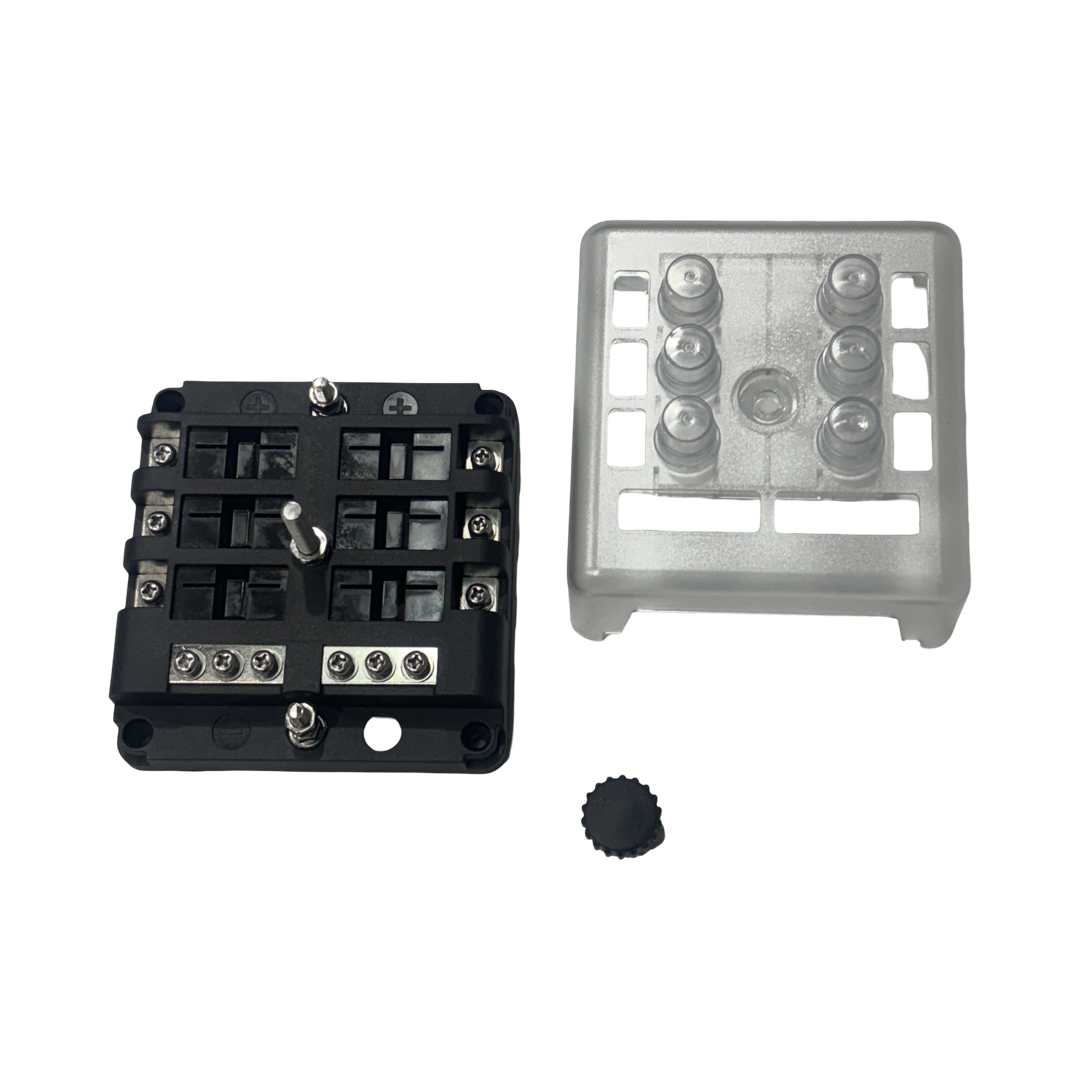

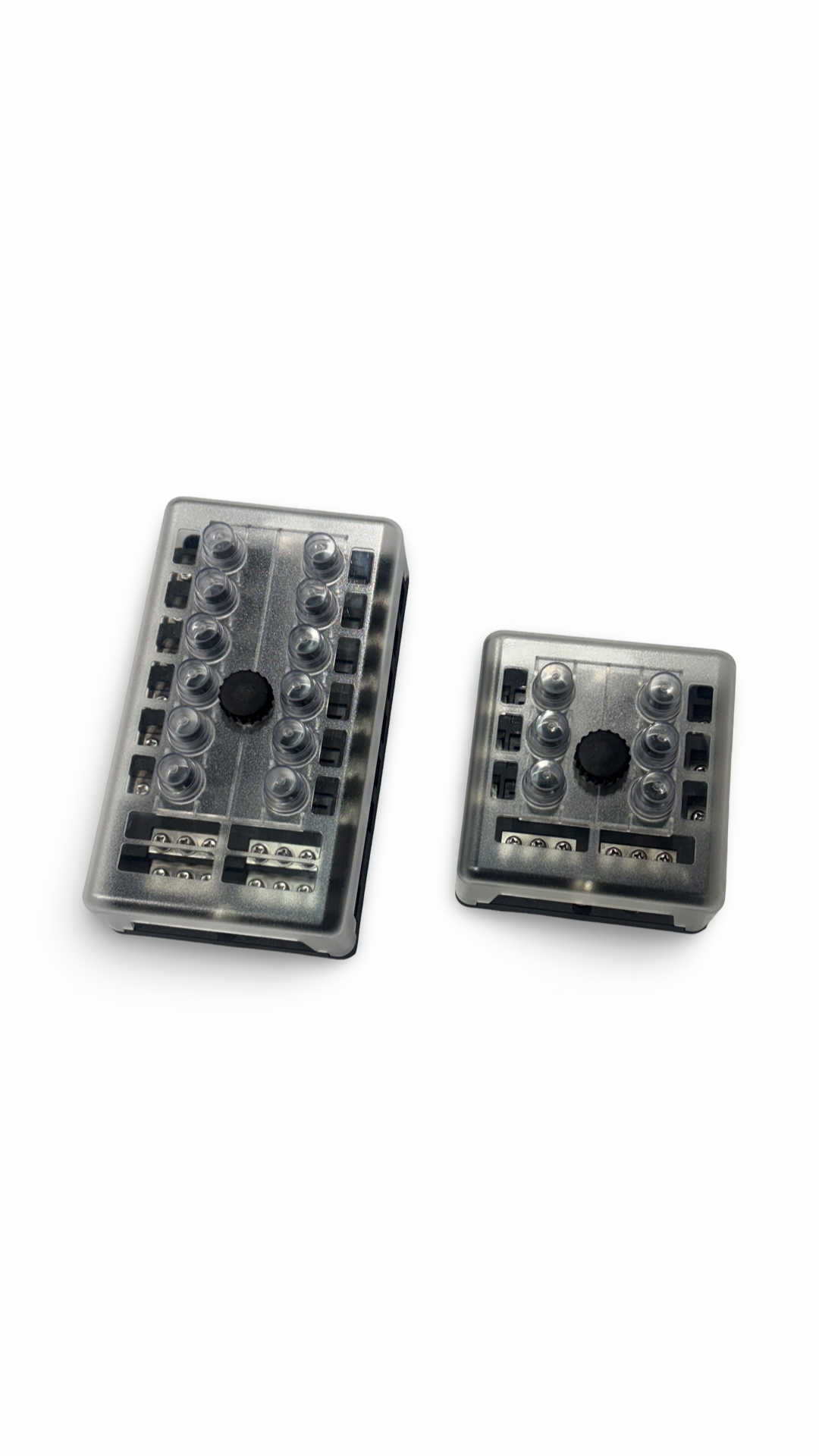

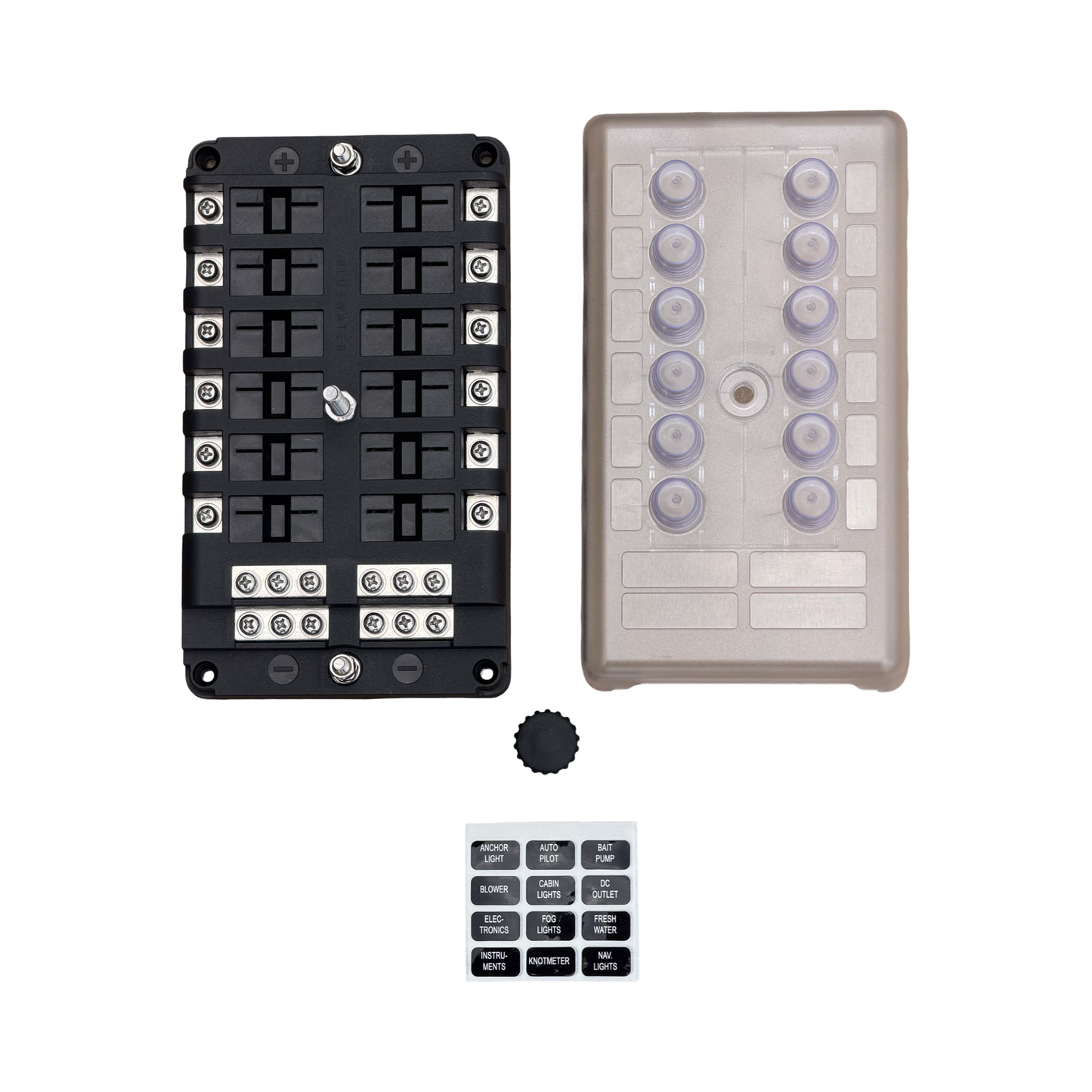

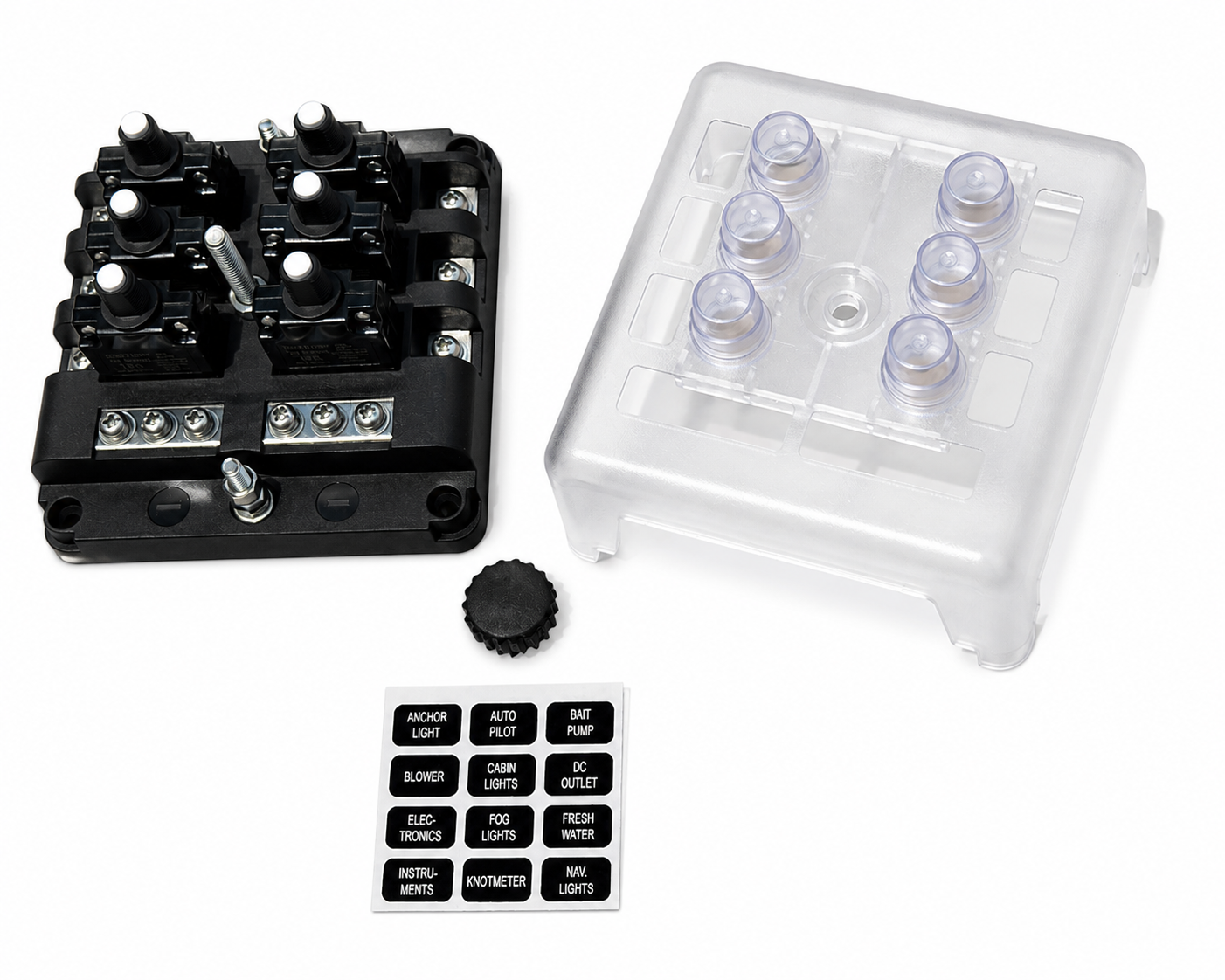

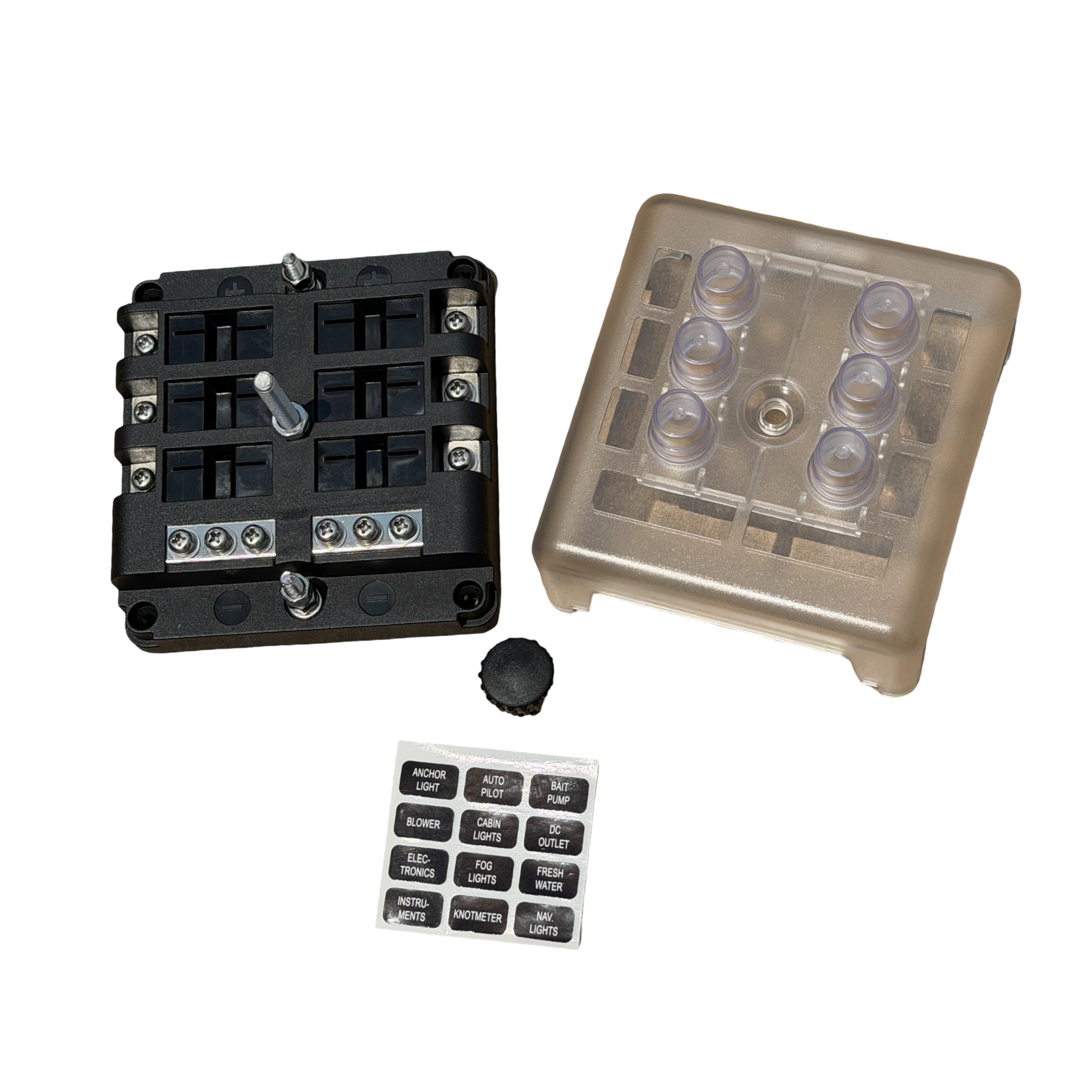

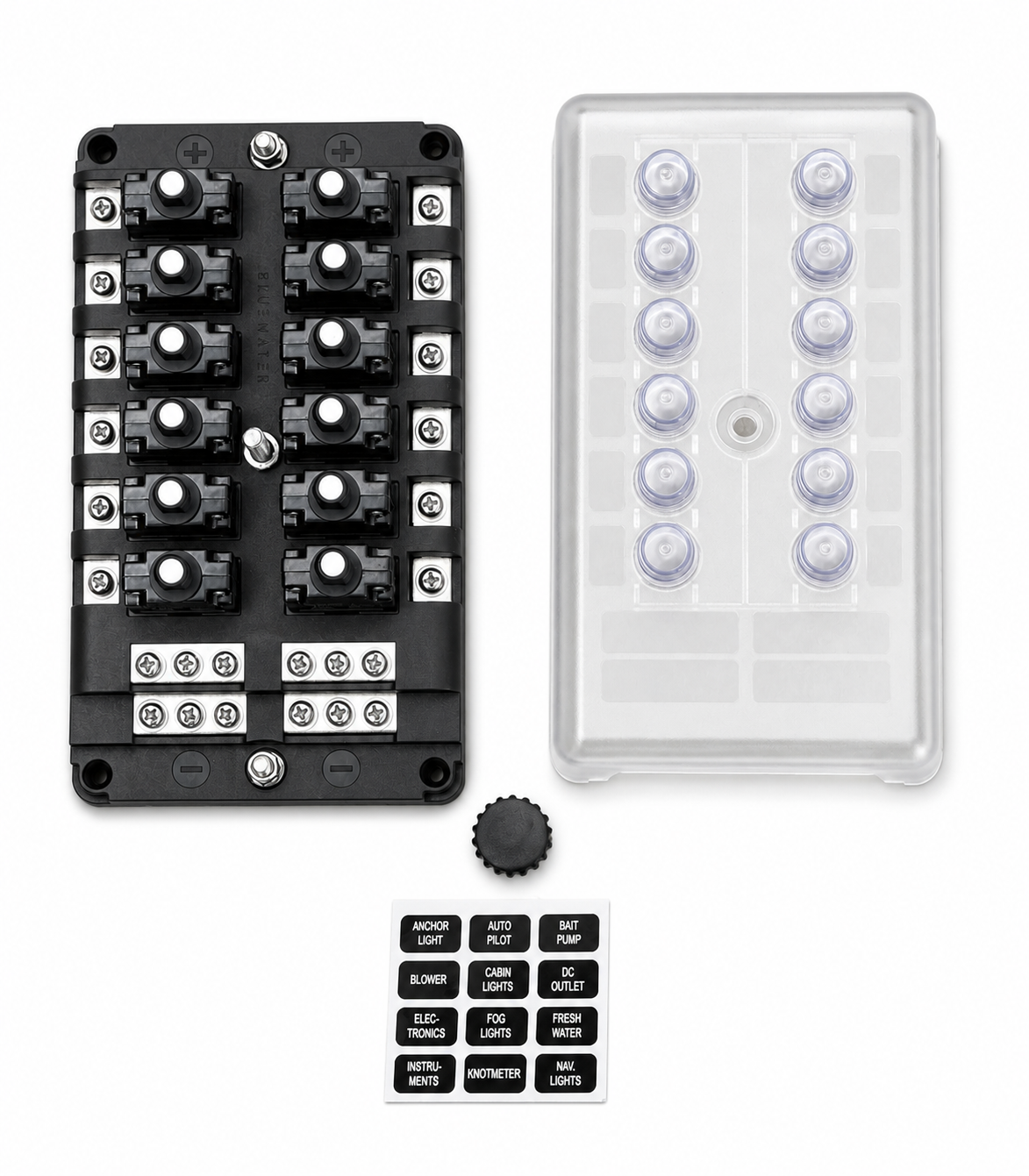

This circuit breaker block is available in 6-position and 12-position configurations, both rated for up to 48V DC with a 100A input capacity. The input terminals feature M5 threaded studs, while the output terminals use M4 studs rated at 25A max per circuit. It’s compatible with our BW 38 Series.

Built with nickel-plated copper, stainless steel hardware, and a durable polycarbonate base, this panel is engineered to handle marine environments. Mounting is straightforward with 0.1695” holes, spaced at 3.74” x 3.54” (6-position) or 6.61” x 3.54” (12-position)depending on the model.

Whether you’re wiring a new build or upgrading a fuse box, this circuit breaker block offers a clean, reliable, and resettable power distribution solution.
