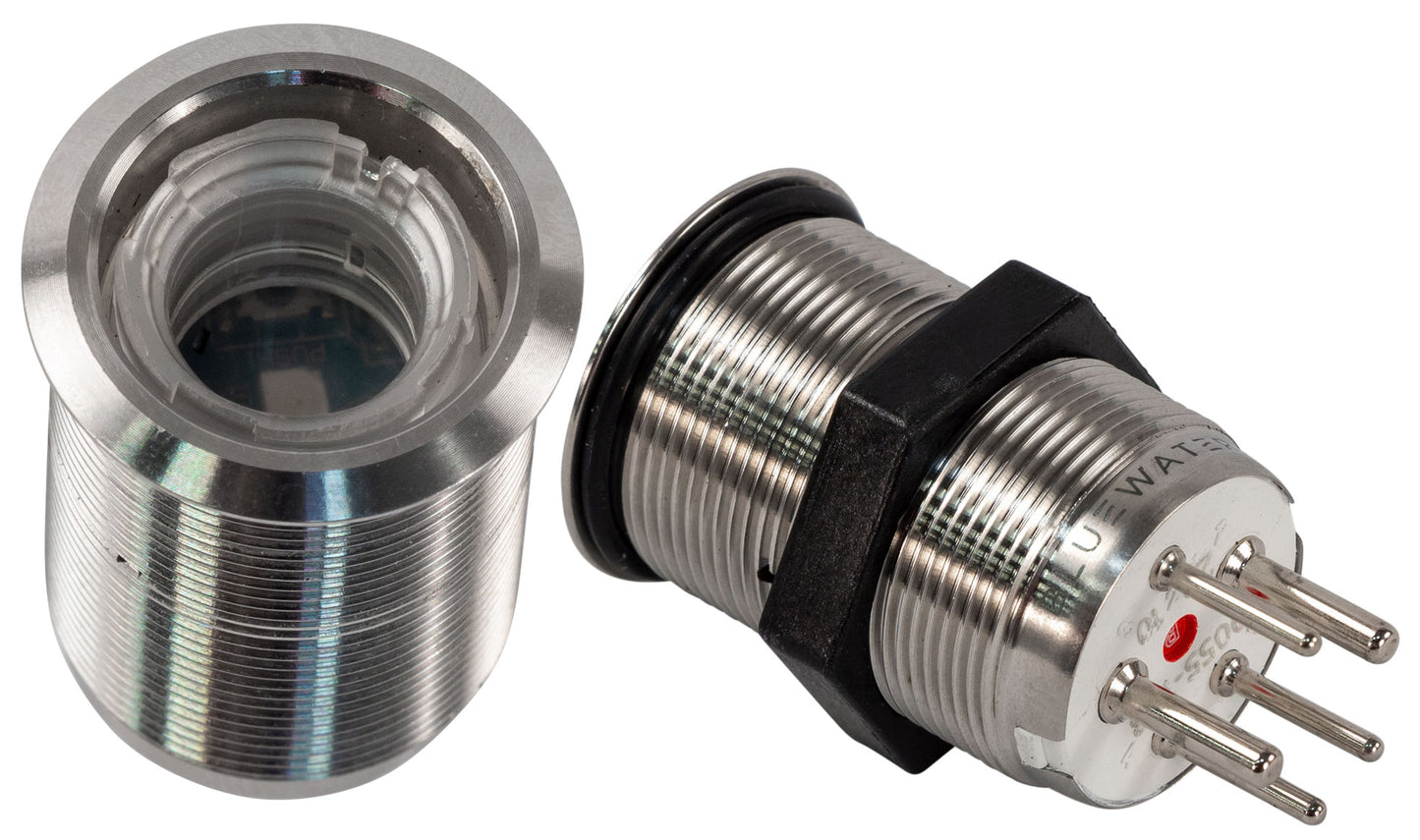

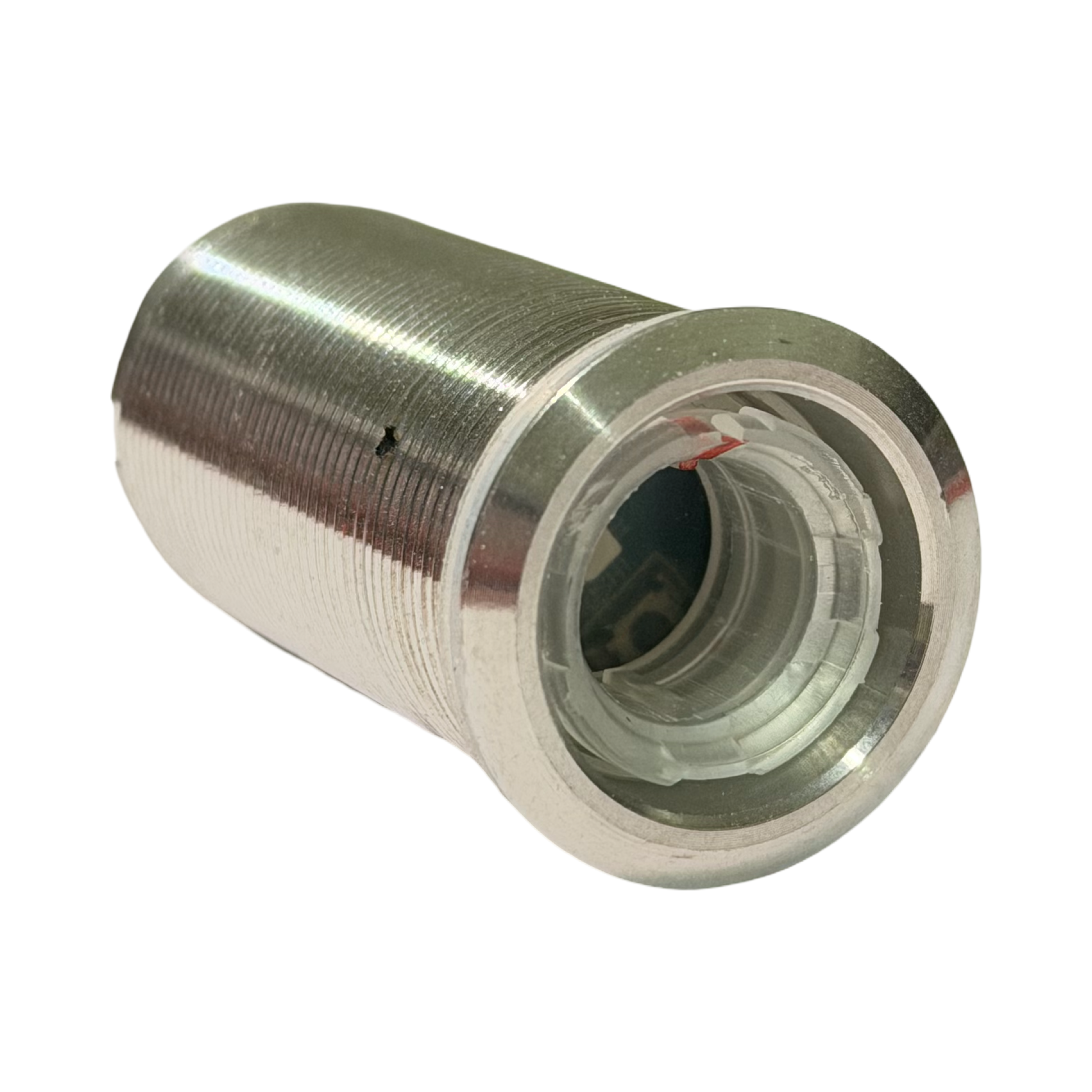

Bluewater 22mm Switch Only

The latest in LED lit electronic switches from Bluewater Enterprises. These switches feature easily swappable buttons (sold separately) so you change functions easily. This version is sold without a wire harness for users who want to build their own wiring harnesses.

• 120 AMP Rating (1 Channel), 10 AMP Rating (2 Channel)
• Not Resettable
• 20 Amp Rated
• Multiple Switch Options
• 100 + Label Options
• 120A Inrush Surge Protection

• IP69K Waterproof Rated
• 316 Stainless Steel Body
• Electronic Actuator
• Mechanically rated for 50,000 cycles
• Switches are LED Backlit
• Caution: Momentary switch applications controlling solenoids may require a 5 amp diode on the output wire of the switch in order to prevent damage to the mosfet switch circuit.

Required Parts:

•  Actuator
• Deutsch Plug Harness
