Bluewater 22mm Adjustable Breaker Switch Only
Bluewater 22mm Adjustable Breaker Switch Only
Bluewater 22mm Adjustable Breaker Switch Only
  • Load image into Gallery viewer, Bluewater 22mm Adjustable Breaker Switch Only
  • Load image into Gallery viewer, Bluewater 22mm Adjustable Breaker Switch Only
  • Load image into Gallery viewer, Bluewater 22mm Adjustable Breaker Switch Only

Bluewater 22mm Adjustable Breaker Switch Only

Regular price
$74.99
Sale price
$74.99
Regular price
Sold out
Unit price
per

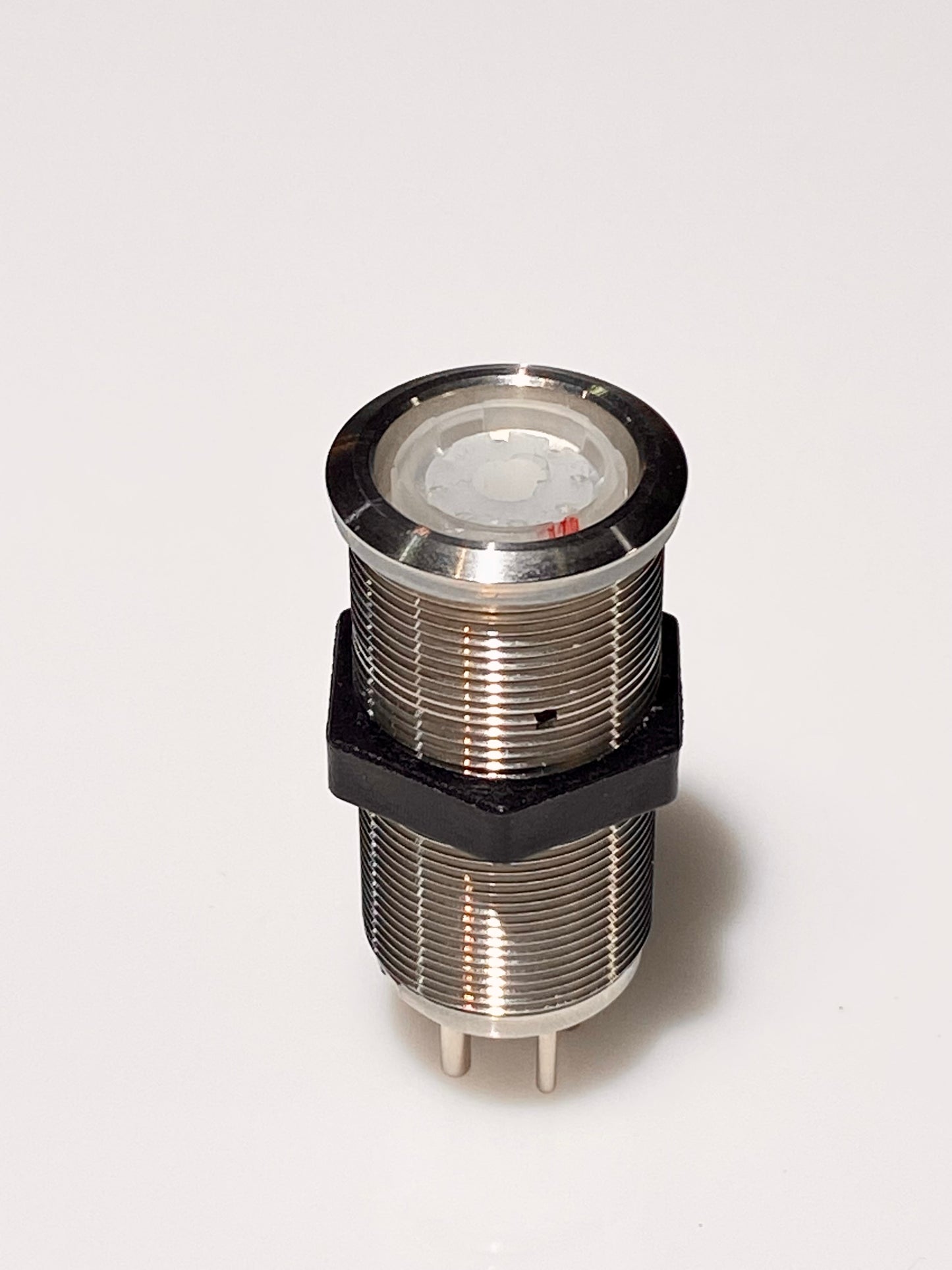

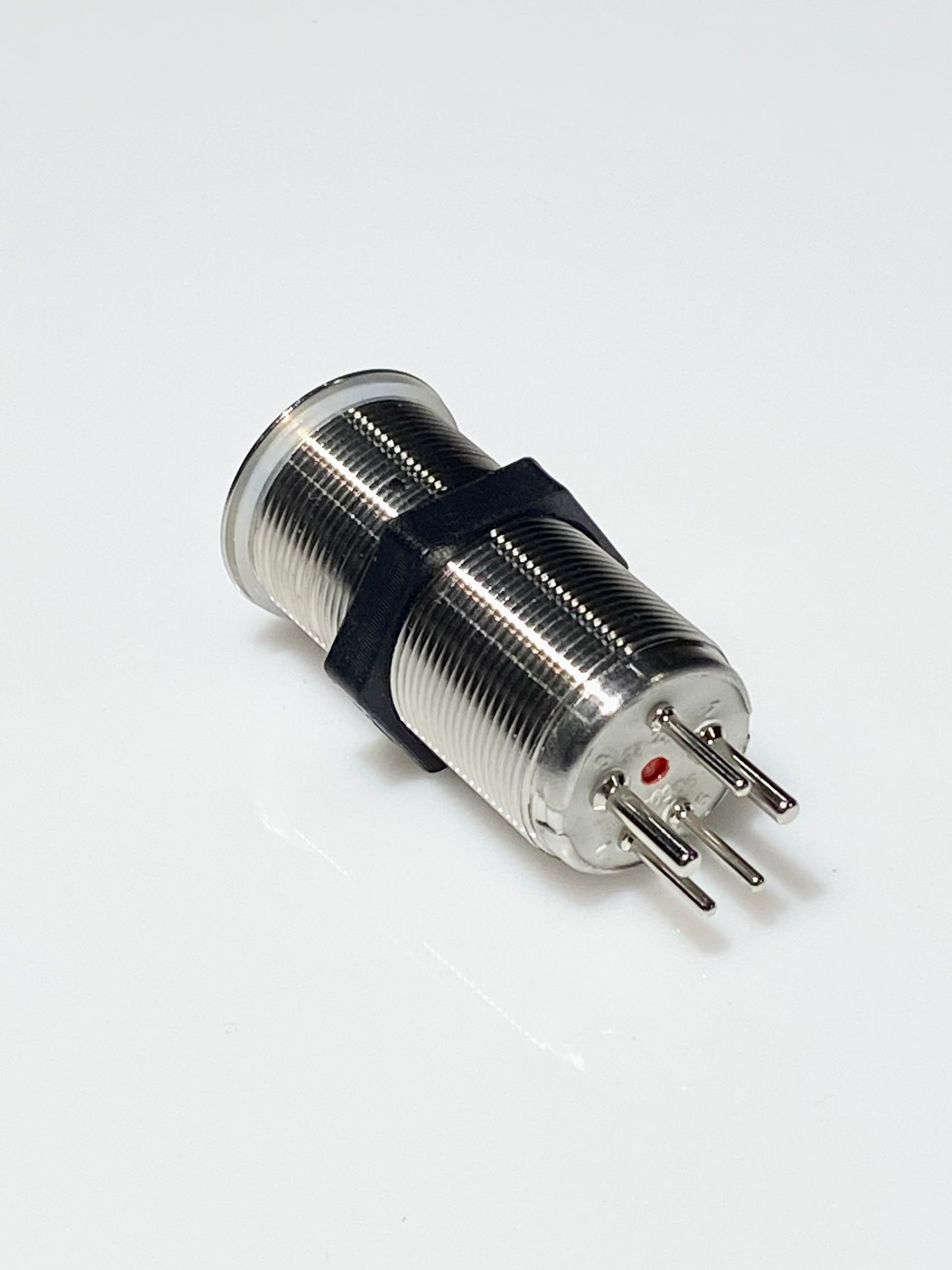

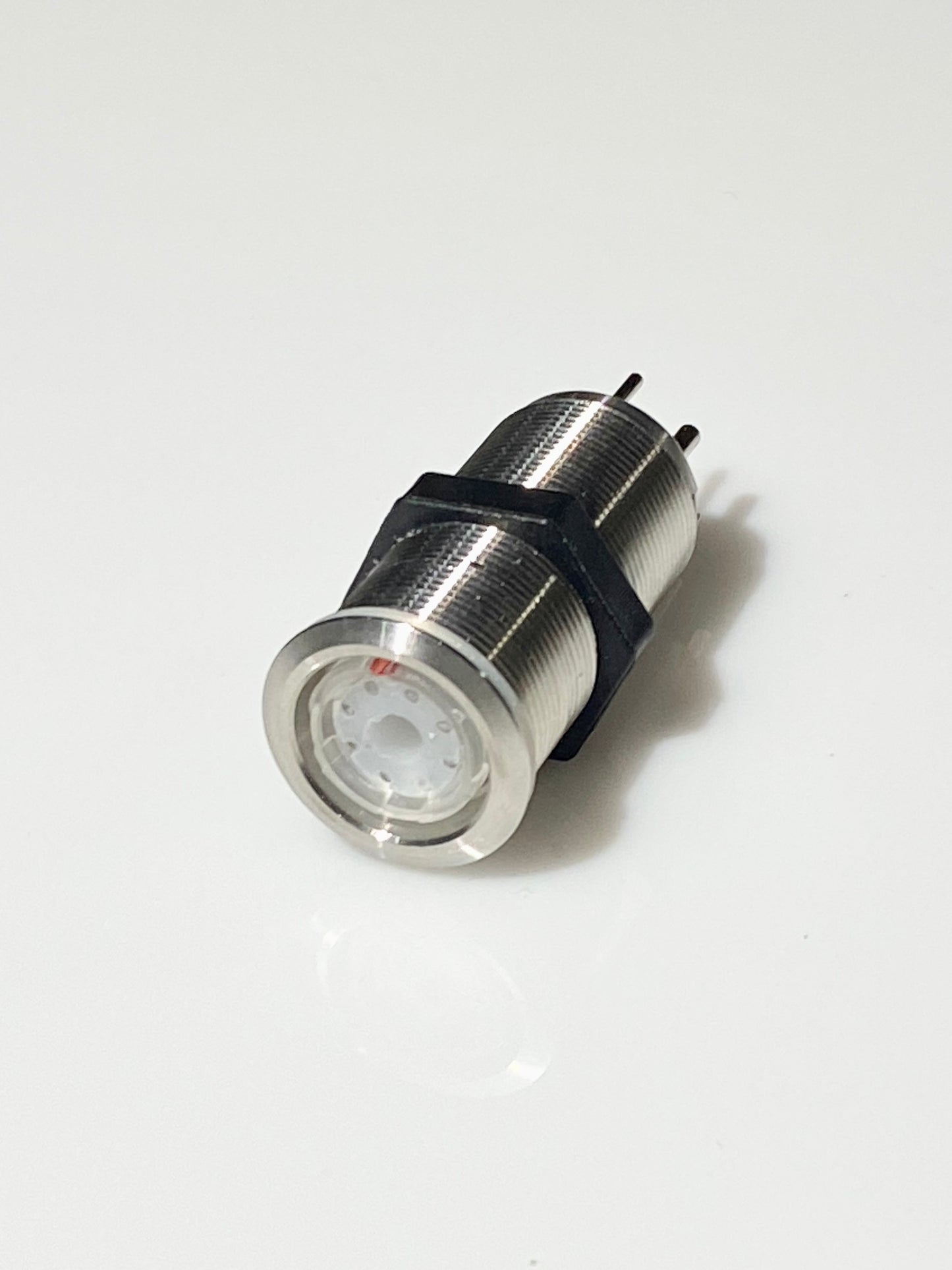

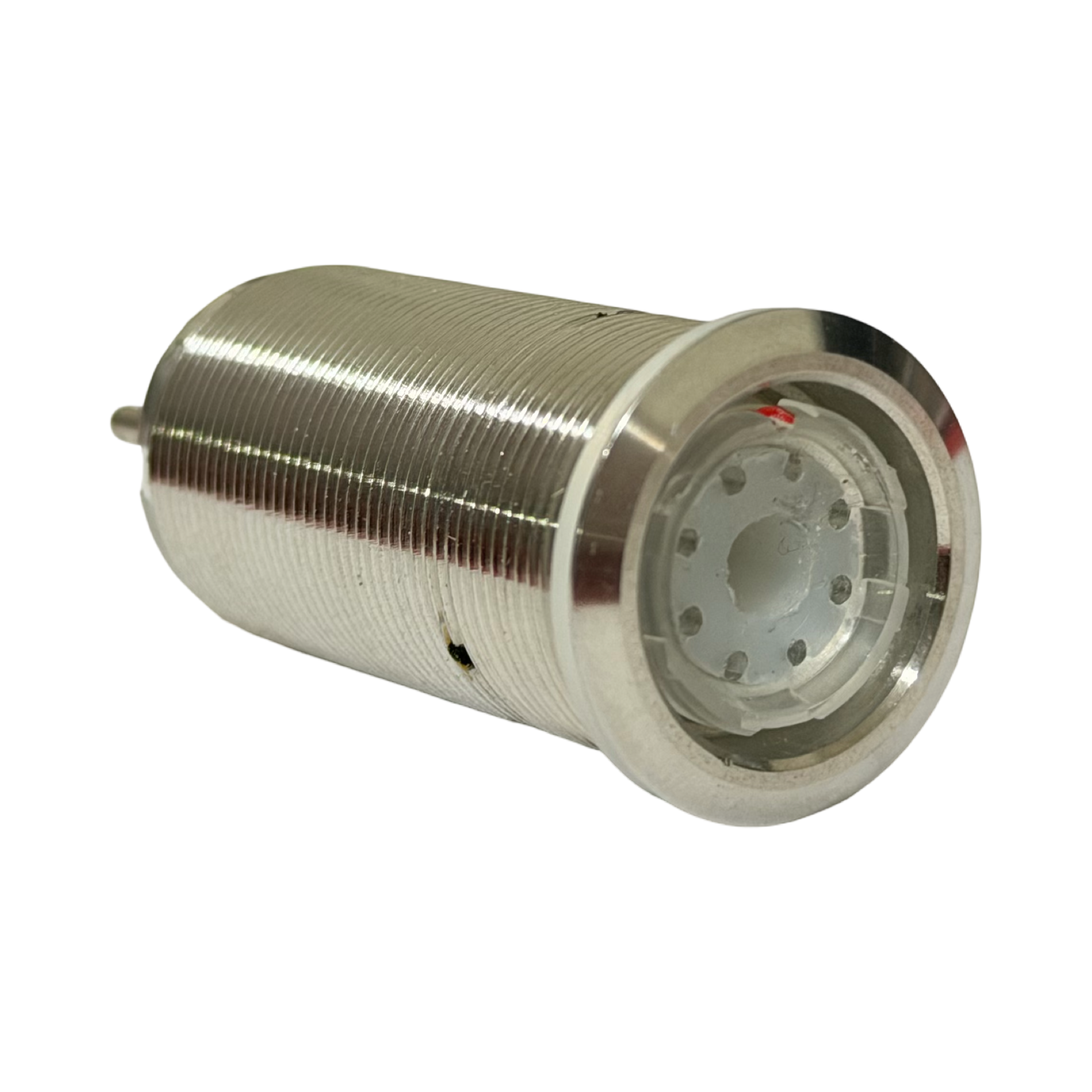

The latest in LED lit electronic switches from Bluewater Enterprises. These switches have built in breakers which can be set at positions from 0 to 20 Amps. These switches feature easily swappable buttons so you change functions easily. There are over 100 Switch Function Icons to choose from, see the related parts!



  • 20 AMP Rating (1 Channel), 10 AMP Rating (2 Channel)
  • 8 programmable Amp positions: 3,5,6,7.5, 10, 15,20,0.
  • Programmed by default at 5 Amp. We can factory reprogram for a small fee.
  • Reprogramming only to be performed by authorized installers and dealers.
  • Multiple Switch Options
  • 100 + Label Options
  • Switch button can be removed and replaced.
  • 120A Inrush Surge Protection
  • Laser Etched Logos available
  • IP69K Waterproof Rated
  • 316 Stainless Steel Body
  • Electronic Actuator
  • Mechanically rated for 50,000 cycles
  • Switches are LED Backlit
  • Plug and Wire Harness with 12" wire lead INCLUDED.
  • Caution: Momentary switch applications controlling solenoids may require a 5 amp diode on the output wire of the switch in order to prevent damage to the mosfet switch circuit.
  • NOTE: Momentary Switch should not be used as an Engine Start switch
