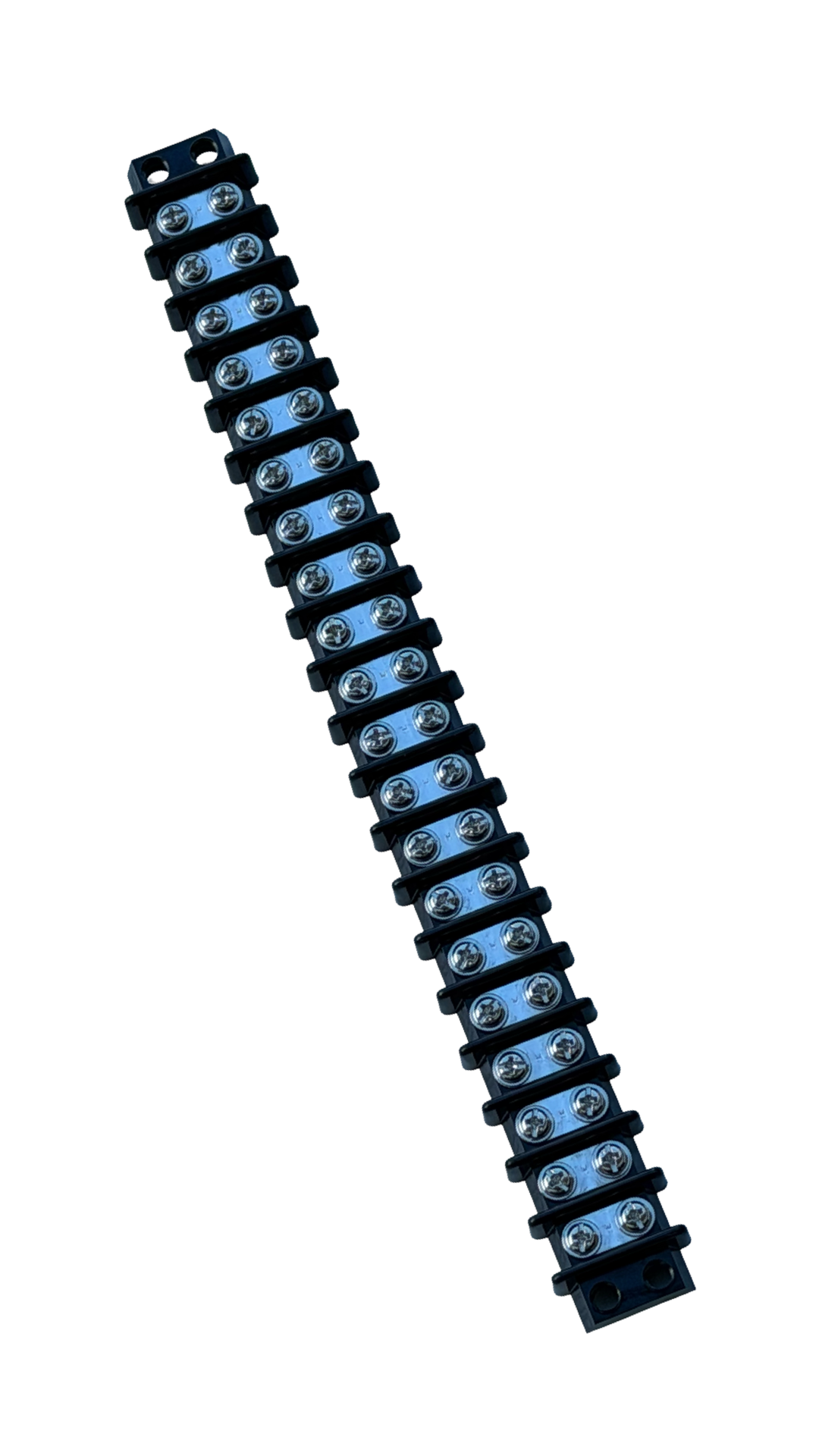

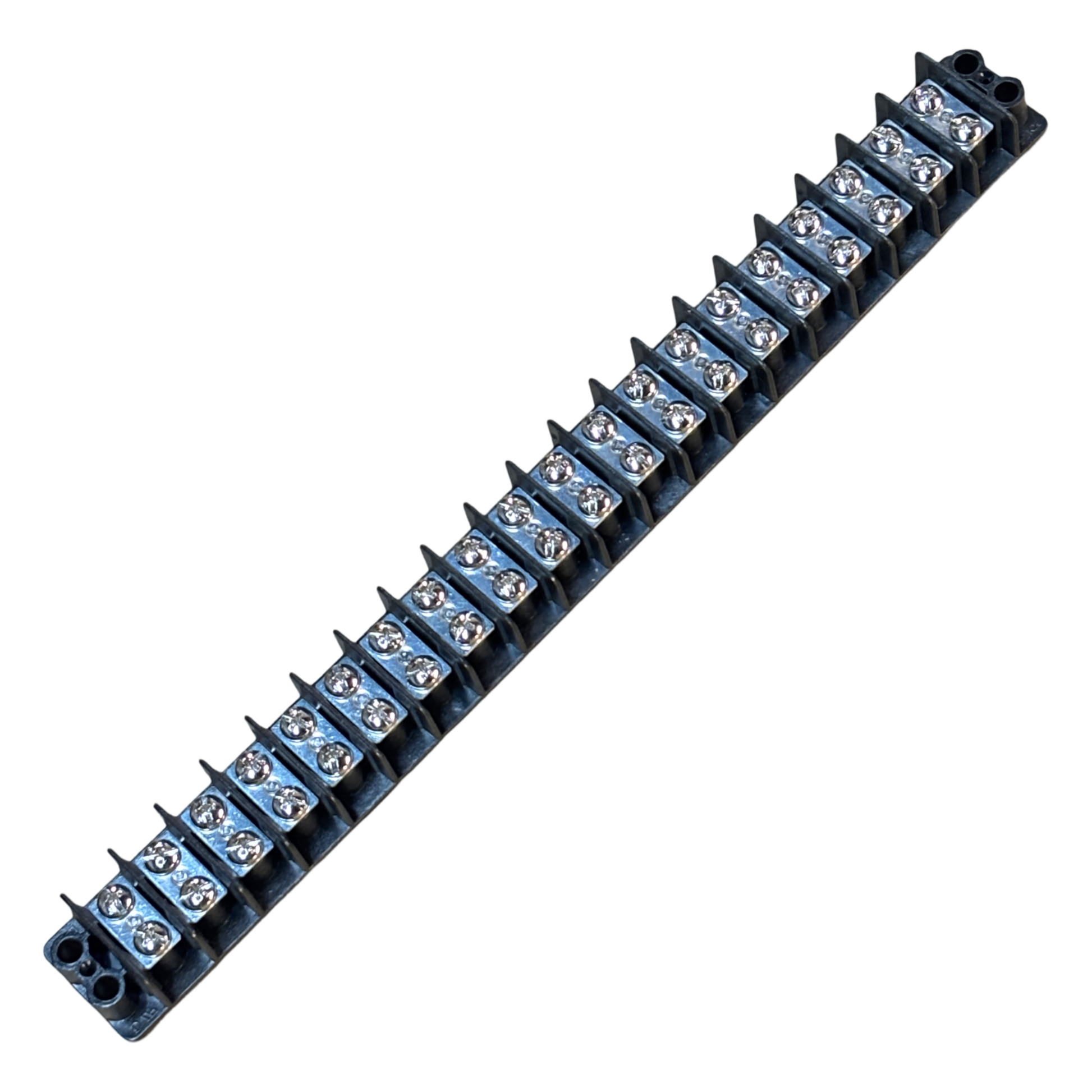

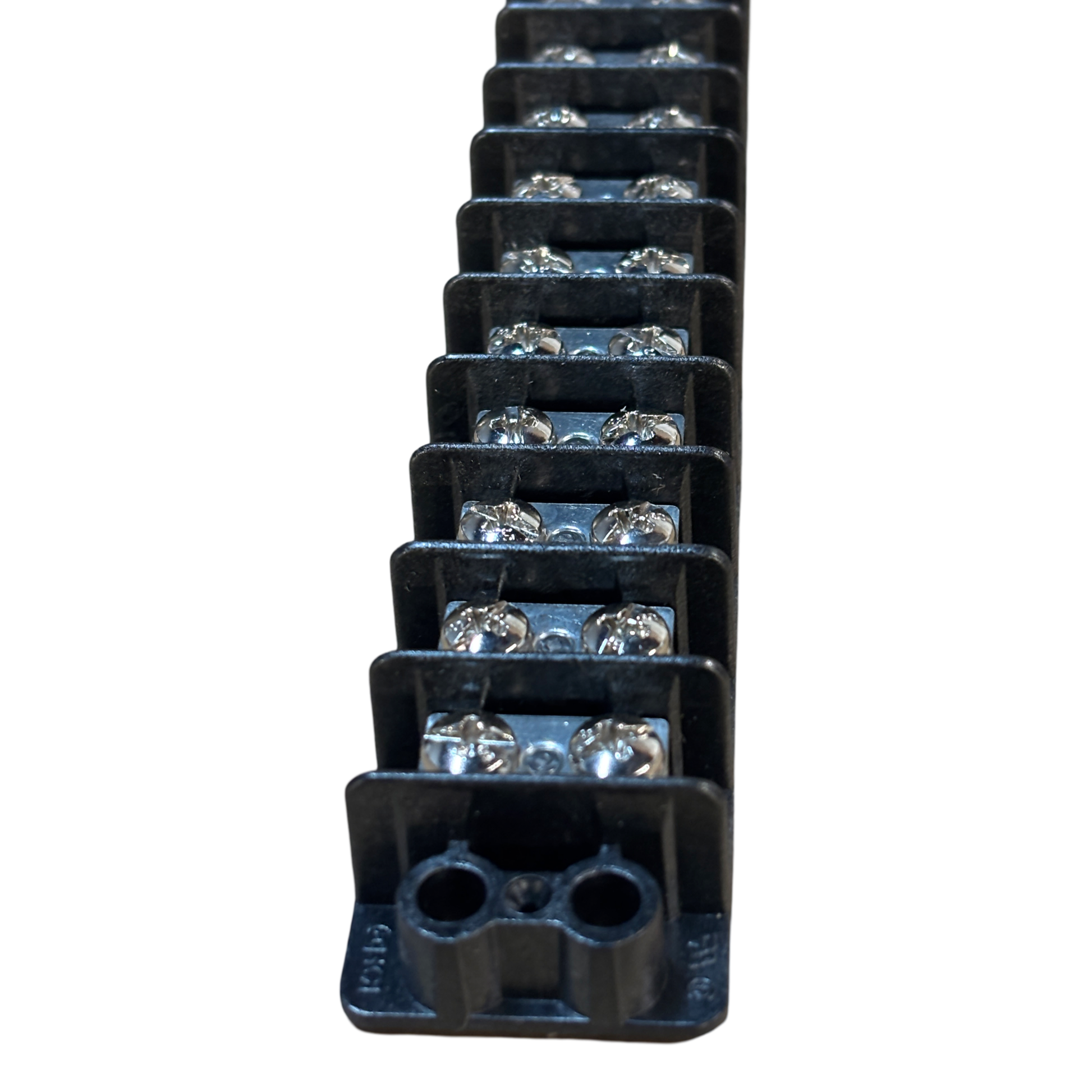

20 Circuit Terminal Block 30A

Wire Compatibility:

- Standard Binding and PSB Screw: #12 - #14 AWG copper, torque 16 lb-in.
- Listed Lugs: #10 - #22 AWG, torque 16 lb-in.
- SEMS Screws (models 3765/3767): #12 - #14 AWG copper, torque 16 lb-in.

Electrical Ratings:
- Amperage: 30A with Listed ring lug or unprepared wire.
- Voltage: 600V AC/DC (UL 1059 Class C).
- Short Circuit Rating: 10,000A.
- Suitable for factory and field wiring.

Certifications:
- UL Recognized and CSA Certified.
- CE compliant and RoHS certified.

Materials:
- Insulator Base: Thermoplastic, flammability rated UL94V0, -40°C to 125°C.
- Connector: Tin-plated brass.
- Drive Screw: Stainless steel.
- Binder Head Screw: Nickel-plated steel.
