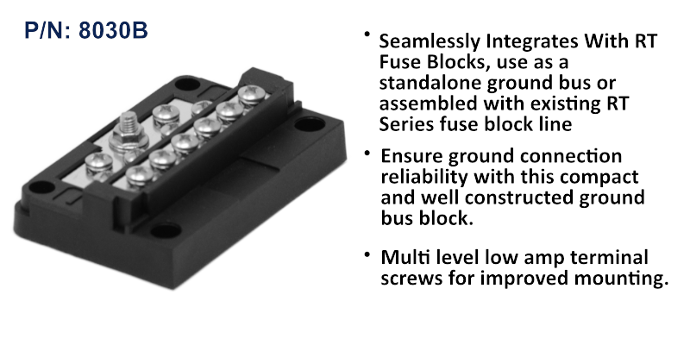

RT 12 Circuit Ground Bus Bar, Bulk Pack
RT 12 Circuit Ground Bus Bar, Bulk Pack
Couldn't load pickup availability
Description
Applications / Problems This Solves
12 Circuit Block: Ensure ground connection reliability with this compact, and well constructed ground bus block.
RT series connection compatibilityenables smaller installation footprint and convenient negative terminal access when installed with a fuse block application.
Feature Summary
Bullet-proof Construction: Designed with high temperature materials and stainless steel self-locking hardware allow mounting anywhere on vehicle.
Seamlessly Integrates With RT Fuse Blocks: Use as a standalone ground bus or assembled with existing RT series Fuse Block Line
MAX CURRENT - ENTIRE BLOCK (AMPS)
100
MAX CURRENT - PER CIRCUIT (AMPS)
30
MAX OUTPUT WIRE SIZE
#10 AWG
VOLTAGE RANGE
(V DC)
0-36
NUMBER OF FUSE POSITIONS
12
OUTPUT TERMINAL CONNECTION RING TERMINAL SIZE
m4 / (#8)
Focal Features
Robust Materials For Harsh Environments
All attachment hardware constructed of stainless steel with self-locking mechanisms for long lasting installations. Plated copper alloy bus bar conductor withstands corrosion and maximizes conductivity. Engineering grade composite insulator supports high temperature application exposure such as engine compartments.
Seamlessly Integrates With RT Fuse Blocks
Can be installed individually on it's own, or assembled to the end of a 6, 12, or 18 position RT Series Fuse Block for a more compact overall footprint.
